In Stock

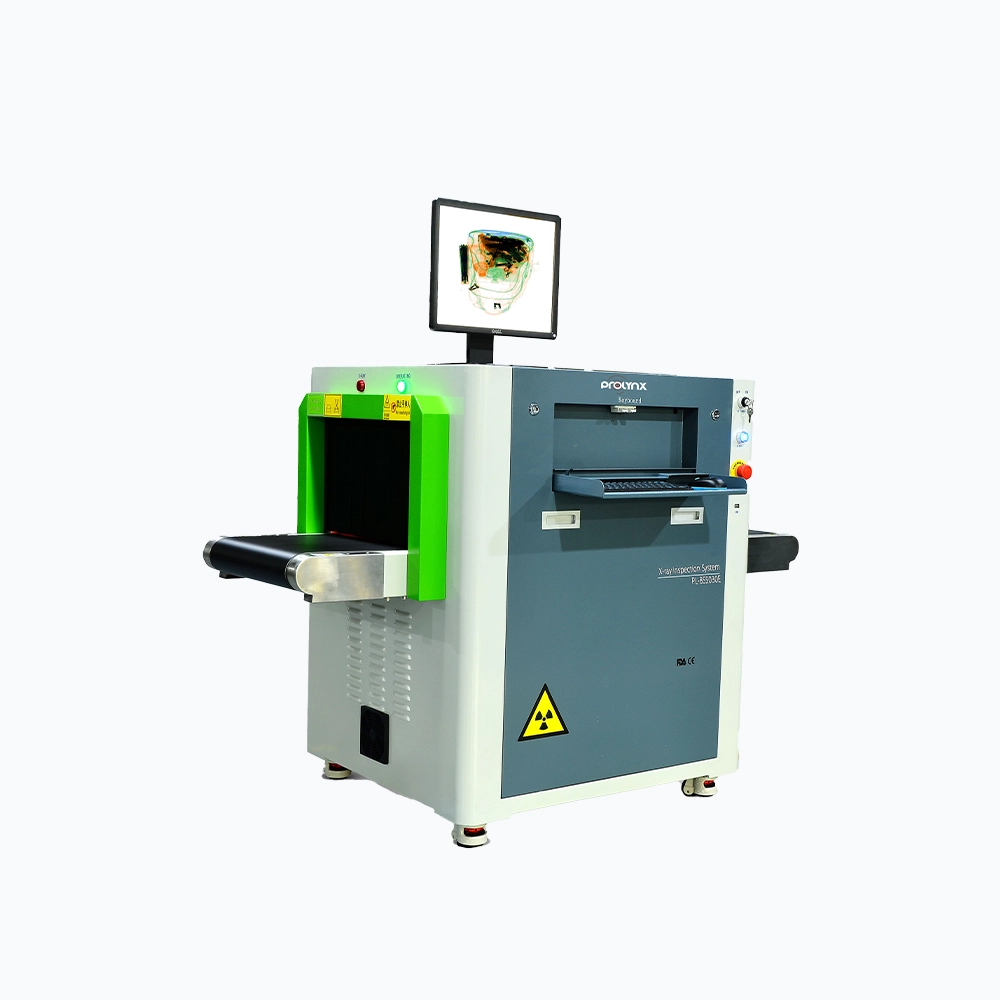

Prolynx – X-Ray Baggage Scanner – PL-BS5030E

Brands: Prolynx

Key Features:

Inspection Speed of 0.22m/s
Steel Penetration of 18mm
Max. Inspection Object Size of 500mm x 300mm
Remote Technical Support
In compliance with international safety standards
X-ray dose rate is close to naturally occuring radiation
Accurate Material Recognition: Orange for Organic, blue for inorganic,
green for metal and compound
Affiliated explosives and narcotics detection enables auto-alert
upon the presence of explosives and narcotics

Additional information

Dimensions	1603mm x 810mm x 1150mm (LWH)
Tunnel Size	505 x 300mm
Weight	380kg
Conveyor Height	703 ± 10mm
Inspection Speed	0.22mm/s
Max. Load Weight	100kg
Resolution	40AWG(Typical) 14mm (Standard)
Penetration	18mm (Typical) 14mm (Standard)
Radiation Safety	Meets film safety ISO 1600
Radiation Leakage	< 0.4μGy/h (5cm away from the housing)
Anode Voltage	100kV
Cooling Cycle	Sealed Oil Cooling & 100%
Single Inspection Dose	< 1.0 μGy
X-ray Detector	Photodiode
Gray Level	4096
Monitor	17”
Image Enhancement	Black and White Inverse High-energy Penetration Low-energy Penetration Super-enhancement Elimination of Organic or Inorganic substances Variable Absorption Rate Pseudo-color *Arbitrary Selection (user selected ROI zoom) (64X image magnification/no loss of resolution)
Recognition	Orange for organic matter, Blue for inorganic, green for metal and compound
Image Playback	50 inspected images could be replayed
Storage Capacity	No less than 100 thousand pieces of image
Standard Functions	Date/time display Baggage Counter User management System Operation Clock X-ray on Clock POST Image Storage & Retrieval Diagnosis & Maintenance Dual-Scan Image Recognition Training *Cloud data storage and analysis
Optional Functions	High Density area alarm Explosives and drugs auxiliary examination *Dangerous goods image insertion
Operation Temperature	0 ~ 40ºC / -5 ~ 50ºC
Humidity	10% ~ 90% (No Condensation)
Power Supply	220VAC ±5% 50Hz / 60Hz
